HOW TO INSTALL
The Bobeka camping system is incredibly easy to install and remove from the vehicle. It requires no tools, using only simple connections to ensure a secure and tight fit. Converting from a seat to bed follows the same method with all the models. Within a few short minutes you're ready to roll !!
DISASSEMBLING THE TABLE
The table splits into 2 parts to form the supports for the bed. The table is held together with a simple key and wedge system. To disassemble the table pull out 4 the plastic wedges and withdraw the timber keys from their slots. The top can now be now removed from the bottom base

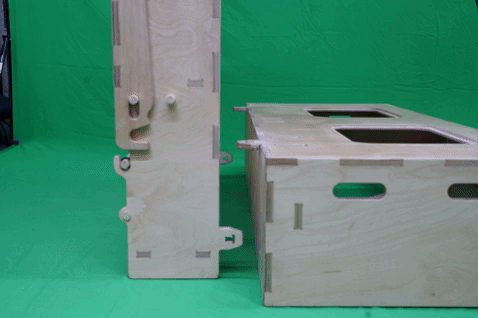

BACKREST INSTALLATION
The backrest can be removed from the bench base simply by lifting up out of the slot. To use as a bed support, the backrest flips around and gets reinserted into the 6 slots in the front of the bench base. The 3 support legs will swing into position.

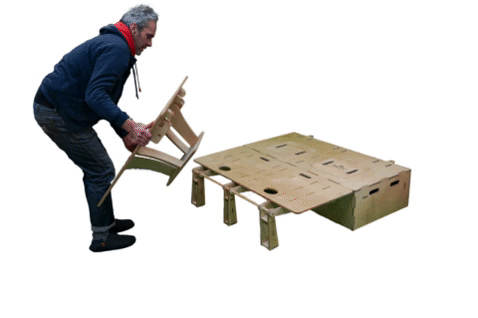

TABLE BASES TO BACKREST INSTALLATION

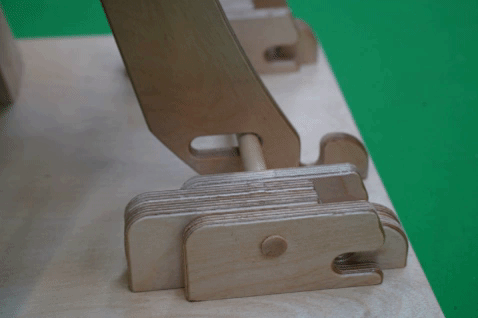

The table bases now need to be attached to the backrest. This is done by simply placing the timber hook section found on the underneath of the table on to the round timber rod. Then table is secured to the timber rod by pulling a catch towards the backrest through a access hole on the backrest
To convert from the bed position to the table and bench is to simply to reverse these actions.

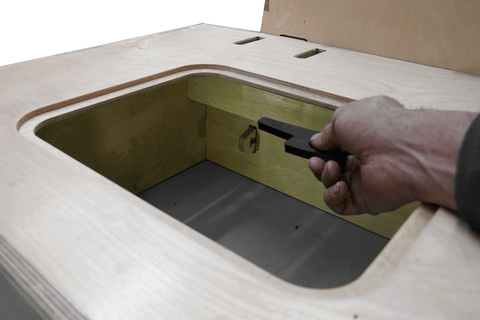

SEAT BOX TO KITCHEN CONNECTOR
If you have chosen a Type 4,5 or 6 model with the kitchen storage unit. This will need to connected to the seat base unit via a simple key wedge into a projecting tabs. 2 are located inside the seat box accessed via the top opening on the seat box. 2 are located on the lower shelf storage area on the kitchen unit, accessed from the rear doors.
